“Copper Clad”, AKA: “Bronzed” Beer Steins.

A copper clad Westerwald 3 liter relief stoneware stein showing three early Frankish kings: Pipen, Charles Martel, and Charlemagne.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

PLEASE NOTE:

I DO NOT DO VALUE ($$$’s) APPRAISALS! There are way too many variables: condition, location, time of year, present trends in stein collecting, local (and now national) economics; but most of all = prior expectations by the owner, are among the reasons!

I have for over a year now placed these short “notifications” at the bottom of each page! It is now obvious to me the general public never gets that far before wanting to ask me a question on beer stein dollar values. So I have had to move them forward as I am getting tired of copying them and sending them back to people as an answer to their “stein value” questions. This was meant to be an informational web site only.

NOR WILL I KNOWINGLY DO ASSESSMENTS for the future selling of steins on auction sites such as eBay, etc. Go to the web site for “Stein Collector’s International” and click on “Stein Talk,” someone there might help you. I just do not have the time! My web site was really started as an informational site for beginning beer stein collectors that would be looking for the info and not the general public. This site has its own search engine [top right on each page!] SO if one puts in “Wood Steins” or “Hand painted steins,” it will give one a list of all the pages that has that subject matter within it.

STILL WISH TO CONTACT ME ABOUT ANY INFORMATION ON THIS SITE?  EMAIL:  STEVE (STEPHEN)  = thevirginian@cox.net

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

[Editor’s note 6-1-2013l  ~Anyone interested in Copper, or old mining should enjoy reading this article I did! ~

http://www.rawstory.com/rs/2013/06/01/mes-aynak-afghanistans-buddhist-buried-treasure-faces-destruction/

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

A new stein collector asks; “Steve, what is ‘bronzed’ as applied to collectable beer steins?”

“Bronzing” is a process in which an item is encased with a layer of pure copper by electro-plating. The copper is then chemically “oxidized” and then polished to achieve a lustrous shine thus creating a lasting and memorable work of “stein production art.”

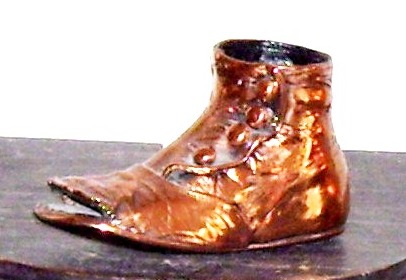

It is the same process as one has done with baby shoes! (I had to buy this shoe to use with my lectures on this subject. It was just too original!)

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

“Okay Steve, then what is metalizing?”

Metalizing, cool dipping, and China coatings are all forms of painted shoes and other items. These finishes are never plated and often damage the items to be plated rather than preserving them.

“Steve,  How do I know that what I’m ordering is genuine metal coating?”

Many companies promote “bronzing” when in fact are doing little more than painting shoes and other items. These companies add trace amounts of copper (or any other color) pigment to a lacquer or resin base and essentially dip or paint the shoe a “bronze” color. To ensure that your items  are being plated with solid metal, look for the word “electroplated.” This is the only word that means genuine metal plated. Most of the companies you see advertising on the Internet are middlemen that forward the items to one of only 3 or 4 manufactures in the United States.

What we collectors call “Copper clad” beer steins are German ceramic steins that have a coating of copper put on them by electro-plating. When left to oxidize over time and with the weight of the ceramic body along with the outer copper shell makes them heavy and easily mistaken for “bronze” and are  described as “bronzed.”

Most are marked “PATENT”, “Patent,  or” PaTenT”,  along with the original pottery’s company’s mold number, but not their  makers marks they/ he bought from several companies..

These German made “copper clad” steins are now” scarce” in the stein collecting world, and most might rate as a  4 or 5 on the Smith Paratore Rarity Scale. I believe this is due to a unique idea never really catching on when these were produced. Another indication is here are not many varieties to be found. While I haven’t seen them all, I would think of no more than 35 to 40 different molds were ever made.

Below are examples of the marks most often found on these steins”

“FOREIGN”

Origin of the ‘FOREIGN'”marking:  McKinley Tariff Act (1):

On October 1st 1890 the Congress of the United States passed the so-called ‘McKinley Tariff Act’, a law that was introduced by the 25th President, William McKinley. This law not only imposed the highest tariffs that the United States had ever placed on imports it also demanded that regardless of country of origin all items imported to the US had to be marked as such, ‘FOREIGN’. The act was later revised in two steps and while the first allowed the real country of origin to be used, based on the fact that Great Britain had already forced Germany to use ‘Made in Germany’ for their goods. The second change introduced the regulation that only standard English terms and characters were legit after the newly-founded state of Czechoslovakia in 1918 had started to use foreign characters (see ‘Čechoslovakia’ on marks (1918-1920)’).

[above information per:  http://www.porcelainmarksandmore.com/resources/historical.php]

……………………………………………………………………………………………………………………………………………..

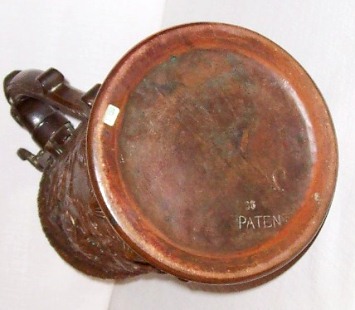

“PATENT”  only.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

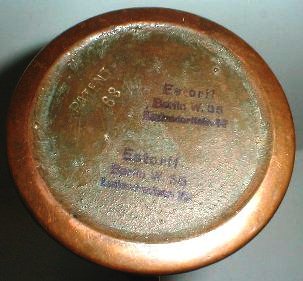

“PATENT’ – with  distributor or retailer’s ink stamp.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

Super -sized photos for clarity. Chris Wheeler attributes this additional blue stamped mark, in addition to the stamped  “PATENT”,  to “Estorff” – a stein distributor, in Berlin.

Ludendorffstraße 72, Berlin W35, Prussia (now the Federal City State of Berlin) .
Kunstgewerbe-Magazin / Art trade shop.

Known dates: xxx    Purchased steins from: L.Thannemann et Cie     Reference: Berlin Postcodes

http://www.steinmarks.co.uk/pages/pv.asp?p=stein733

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

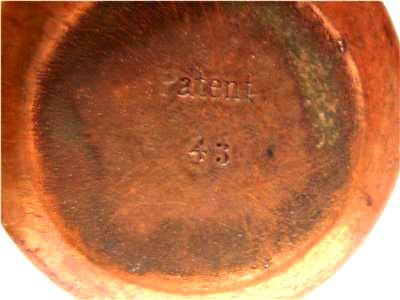

The second mark found:

“Patent”, with No 43.

……………………………………………………………………………………………………………………………………..

 The third mark:

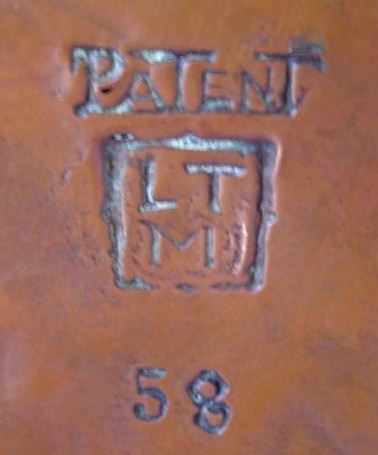

“PaTenT” mark.

……………………………………………………………………………………………………………………………………….

Chris’s research has also lead him to determine that the user of the above (3rd) mark was:

L. Thannemann et Cie. München.   Munich. Bavaria.
Keramikwarenhandel / Ceramics Wholesaler
Known dates: 1885 – 1895
Purchased steins from: Marzi-Remy, Reinhold Hanke, Dümler & Breiden, Albert Jacob Thewalt.
Reference:

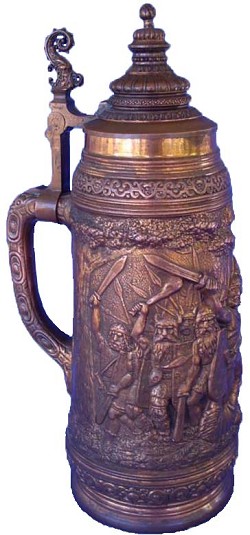

This mark is found on the large Dümler & Breiden (58) stein with Hermann’s battle scene on it, shown below.



Photo compliments of Chris Wheeler’s “Stein Marks” =  http://www.steinmarks.co.uk/pages/pv.asp?p=stein1

For information on the subject of this scene please see: http://www.steveonsteins.com/hermanns-story

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

Chris Wheeler and I have been thinking this three capitalization question through (more like” batting ‘it’ around” thanks to that marvelous Al Gore invention of “the inter-net” and Chris is now of the opinion:

“We know maker’s markings could be omitted on request by the distributor, therefore it follows that wording could be added. I believe that the word “Patent” was added at the green pottery stage by each individual manufacturer, hence the different styles. Thannemann is still the choke point.”

“Therefore I believe that Thannemann ordered the steins from various manufacturers to the required specification and put out the coating work to a local subcontractor. They probably sold direct in Munich and via Estorff in Berlin.” (email 9-12-11)

I agree. Now we have the information and research that Chris has provided us collectors, and for that I am very, very thankful !

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

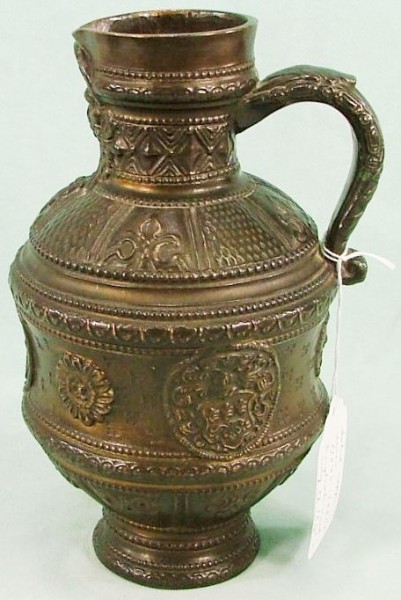

A  Circa 1900’s Westerwald serving stein. 9 inches, with no “PATENT” number.

……………………………………………………………………………………………………………………………………

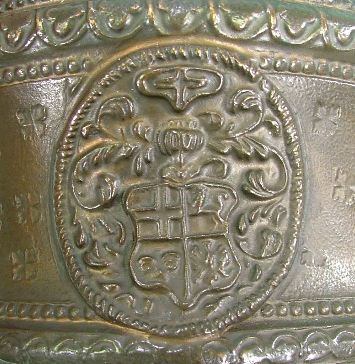

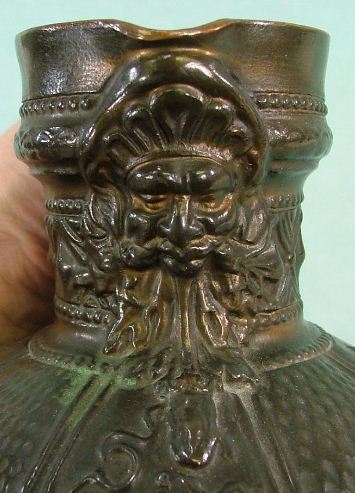

 Details of server above.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

Well collectors, here is some news! We  saw it in print in May, 2010 (in a SCI’s chapter’s newsletter!)  One of the “East Coast Beer Stein Super Hot-shots” (he thinks) in S.C.I.,(who lives in Pennsylvania, admitted he didn’t know how these steins were produced! Wow! Too bad he never came to any of the “Beer Stein Colleges!”

He thought those meetings were far beneath him and in fact was trying to get the whole idea shot down before it even got off the ground!

It was at one  of these BSC’s that Ron Fox and I figured it out and explained the process and showed several examples to everyone there, during one of our open discussion periods …. and we (BSC) don’t charge anyone for any information!  See: http://www.steincollege.com/

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

HOW IT WAS DONE, in a couple of easy steps:

[1] The glazed and fired on the inside BUT unglazed on the outside,  pottery relief steins were ordered and received from many of the prominent German steins makers.

[2]  These steins were then coated with a flux (most often a secret formula back then) and then put into a solution where they were electro-plated exactly like silver plated steins were.
[3] Due to the thickness of the applied copper coating, as  seen on visual observation at the lips of these pieces, and on listening to the “empty space  sound”  when the copper coating when  it has come loose from the stein body and is tapped  as with a pencil / Therefore  The steins had to be treated many times to get that thick, yet the details of the relief are not usually minimized at all, which I find to be interesting.

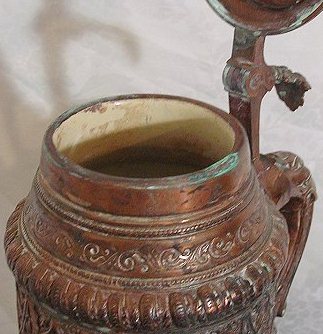

In the photo below I’ve tried to show how the copper was “taken” on the area that was fluxed BUT NOT  not on the inside body which was not fluxed! It will go to the top of the body’s rim, but never completely over it. Of course the lid, inside and out, and the pewter lid mounts / thumblift were coated with the flux also, so these parts  also got covered with copper, and these areas are sometimes found to be  partially to completely devoid of coating from being cleaned too hard and long.!!

……………………………………………………………………………………………………………………………………….



Detail of PATENT # 36, ▲ showing how the copper-cladding comes all the way up and just partially over the lip.

 [4] Then it is polished, shipped to retailers, and sold to buyers, who are impressed with the luster.

 [5] The copper-clad stein then sits on a collector’s shelf for years and oxidizes and gets dirty from non cleaning   ▼  ▼

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

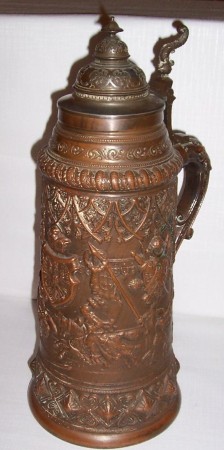

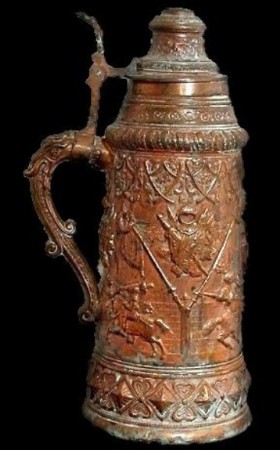

Two versions of ” PATENT” No. 36, ” The jousting stein” in stoneware by Thewalt.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

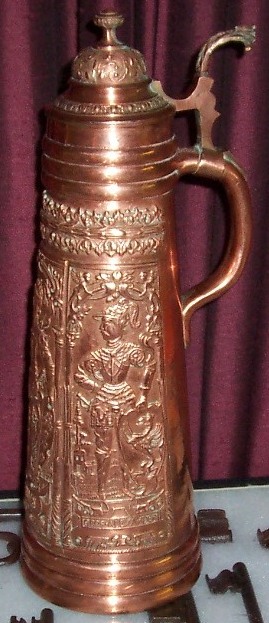

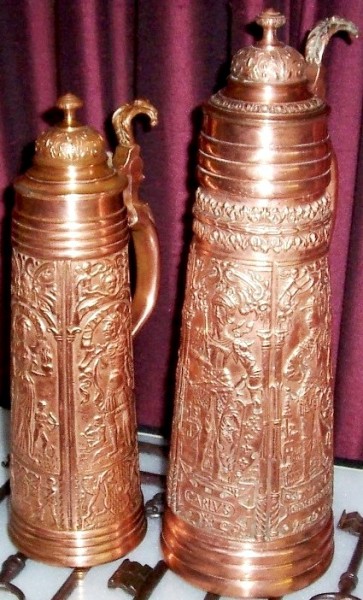

There are several dozen examples of these steins that exist including some copies of Siegburg stoneware piece from the 1500’s, which from my little bit of research into this subject, were never put into production (See just below.) But the idea of “copper clad” beer steins never really caught on, again because once they get oxidized and dirty they look like hell. see above for dates

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

These are marked: No.’s 63  and 61.

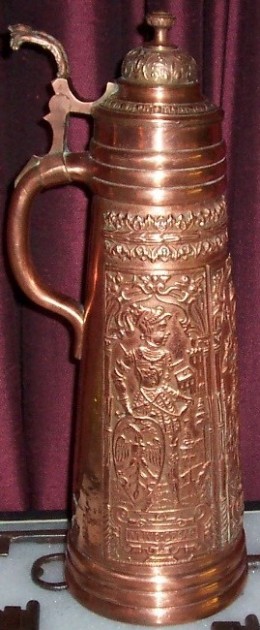

No. 63 = [L],  ‘Jupiter’, ‘Venus’ and that has a date by it of 1593,  and ‘Sol’ and that has a date by it of 1593.  It has a distributor’s blue ink stamp on the bottom: Estorff, Berlin W.35,  Ludondorstrasse {?} 7. see  “Wheeler’s comments above  for explanation

No. 61’s scene are shown a few photos below.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

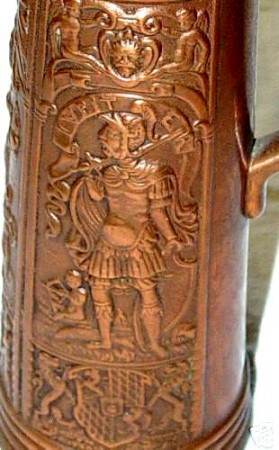

Detail of Jupiter

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

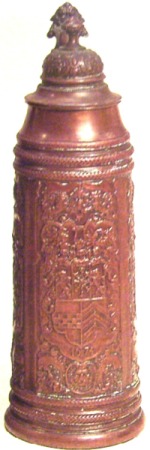

A another Siegburg style, unknown No., 10.5 inches. Coat of arms on middle of front body. [J. Vogt Auctions]

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

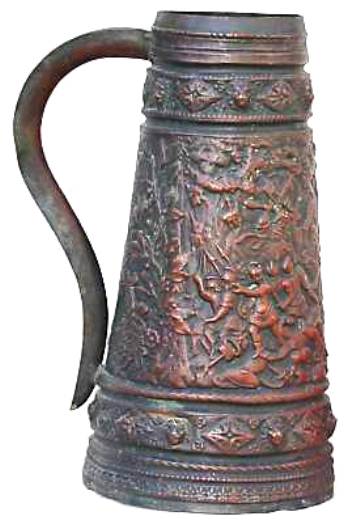

This subject of this piece is also  “Hermann, the German” fighting the Romans. A much different stein than the stein shown at the beginning of this page.  (See  “Hermann’s story” @  http://www.steveonsteins.com/hermanns-story/  ) This is how one usually finds these pieces = dirty and with the copper plating very oxidized. When I first saw this example I thought it was unusual to find a stein (not a server) without a lid.

But it maybe not as unusual for this series of copper-clad steins, as below ▼ is a mug that definitely had a pewter lid put on later. [FWTD = a gift.] There is no indication on any part of the lid that it was ever “bronzed” originally and the coating  later taken off. There would be some remains of the copper in some crack or connection somewhere, as always found on very worn silver plated lids.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>



Original maker’s mold number =  1221.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

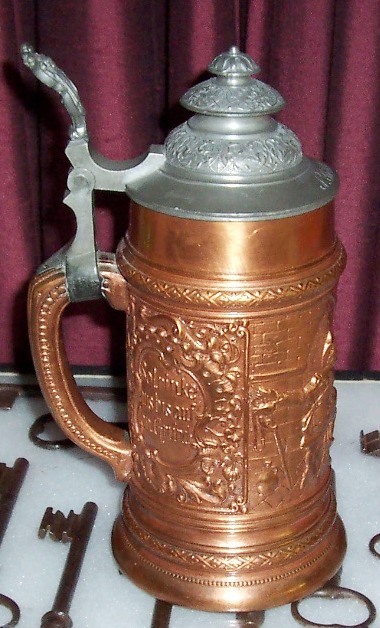

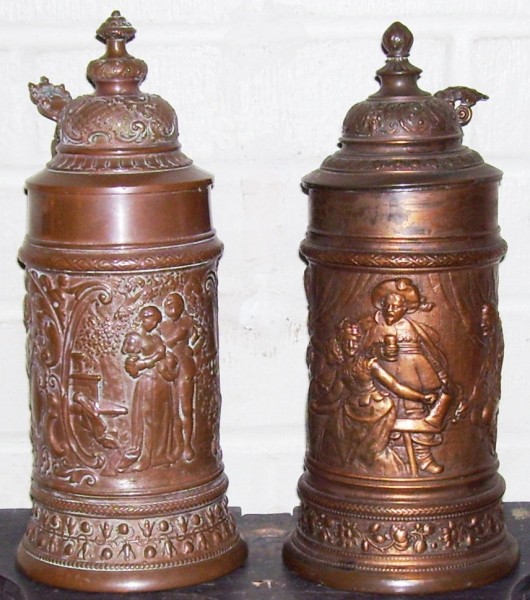

Two .5 liter German pottery relief steins that have been “bronzed.”  “PATENT” with numbers = ? Also ‘as found’ and before cleaning. These were not as oxidized as most. The stein on the right has some wear to the copper on the pewter lid’s lip. Not much one can do about it= copper paint and pencil lead dust rubbing for a darkener = ??

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

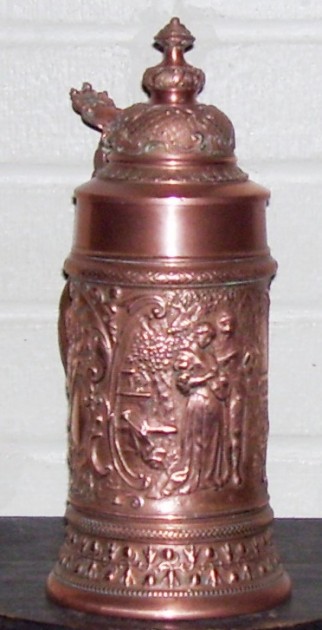

One of the above, cleaned with “King Midas” but not polished with “Maas” yet. See: http://www.steveonsteins.com/how-i-clean-old-copper-brass-pewter-and-silver-10-20.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>



…………………………………………………………………………………………………………………………………………

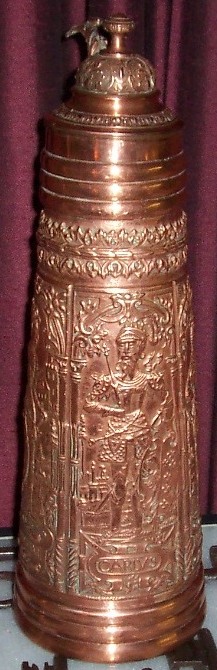

The three panels of “PATENT”, No. 61. Scenes [L]:  “IVLIVS-CESAR” (JULIUS CAESAR);

[MID]  =”CARLVS” (CHARLES = CHARLOMAGNE); [R] = “GROS

ALEXANDER” (ALEXANDER THE GREAT)

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

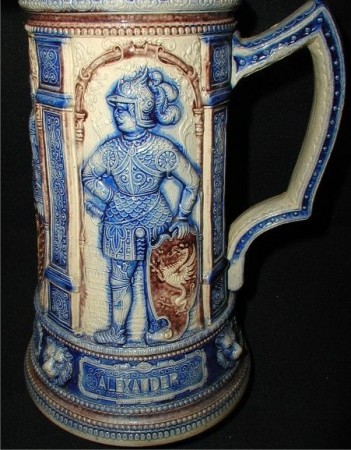

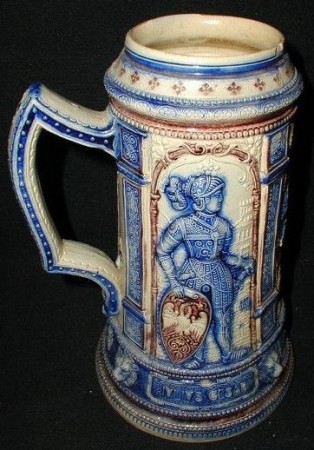

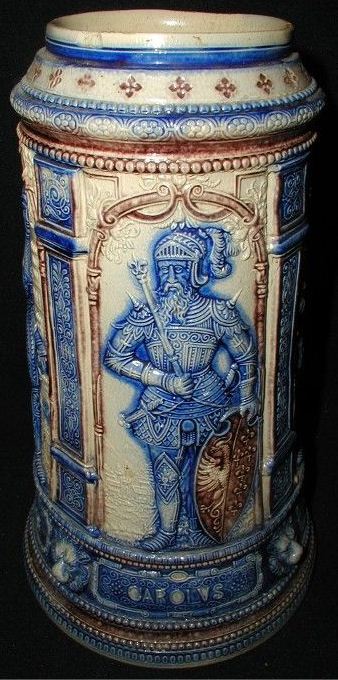

Maybe this is of some small interest to the Westerwald salt-glazed stoneware collectors. Here are very similar scenes shown on a .5 liter Westerwald mug. Circa 1885-95.



…………………………………………………………………………………………………………………………………………

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

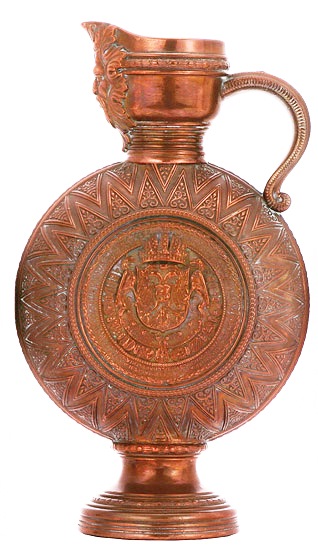

Copper clad wine server , “Moon Jug”  – 14.5 INCH, ” PATENT  43″, which was a different maker’s same mold number but with a much different scene from the other #43 shown above.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

Below are other examples of  “copper – plated” pieces (but should not be called COPPER-CLAD) that one might find on today’s stein market!

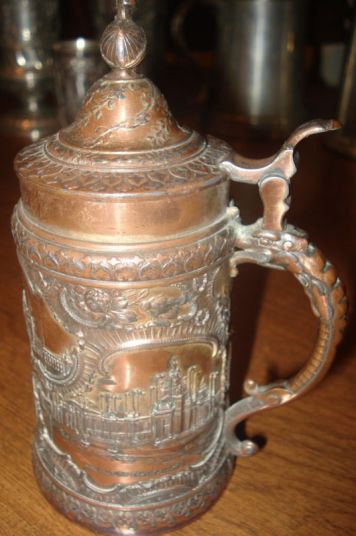

Another “copper – plated” pewter stein from the St. Louis World’s Fair,  in 1904.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

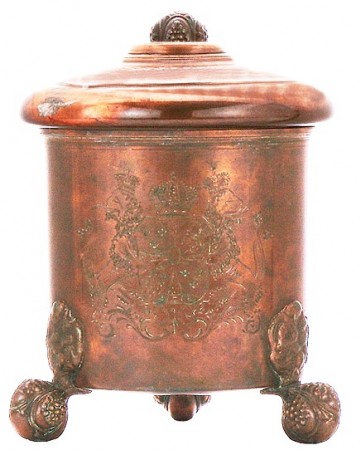

This is a one liter, 100% pewter stein that someone had copper-plated at a later date. It was made by F. Santesson in Stockholm. I do not think the plating was done at the factory, but that is a “SWAG” on my part. The Swedish Coat of Arms is engraved on the front prior to the plating.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
