Guest writer’s articles: “Identifing Faience Steins [Part 1]: Comparisons of North German / South German Fayence Steins” – by William Hamer

Note: This article and all the others in this series  were originally published in “PROSIT,” the magazine of Stein Collector’s International.  Used with permission of the author Bill Hamer, a long term good friend of mine; and from Ron Fox, the editor of “PROSIT.”

Identifying Faience Steins  (Part 1) – Comparisons of North German / South German.

This is the first in a series of articles that will discuss identifying faience factories. Although I have written several articles in the past, when it comes to identifying faience steins, this is the article I should have written before the articles about specific factories (Poppelsdorf  Faience in March 2009 and Magdeburg Faience Factory in September 2006)  [Steve’s note: Those two are published in “Prosit” (SCI’s magazine) not on this website. Also this article first appeared in PROSIT under the title: “Identifying Faience Steins . Part 1-  North versus South German.”]  Subsequent articles will discuss specific faience factories.

First, let me give you a little background on faience steins.

Faience factories were always located near wood and clay, the two most important ingredients for production.  Once the factory established a workable clay recipe, a thrower then made a basic shape.  For steins, that shape is the straight sided tankard (walzenkrug), the pear-shaped stein (birnkrug), or the narrow-necked jug (enghalskrug). The piece was then let dry until leather hard. The handle was attached and the piece received its first firing to about 700˚C.  This drove off the water and left a hard porous body.

After the first firing, the stein was dipped in a tin oxide glaze (tin oxide, powdered glass, and a flux). Most factories then decorated the stein with high temperature pigments (cobalt blue, antimony yellow, copper green, manganese violet, and iron red). The stein then received its second firing to about 1000˚C.  This second firing melted the tin glaze and the pigments into a smooth porcelain type finish. Most of the faience steins were produced this way (see article Faience Artist in December 2007 where there is a discussion about muffle fired faience).

When identifying faience steins, they can be broken down into two major categories: North Germany and South Germany.

These two regions produced different style steins and had different techniques in applying pewter to the steins and these differences can be used to identify a stein as either coming from the north or the south.



NORTH GERMANY:

Figure 1

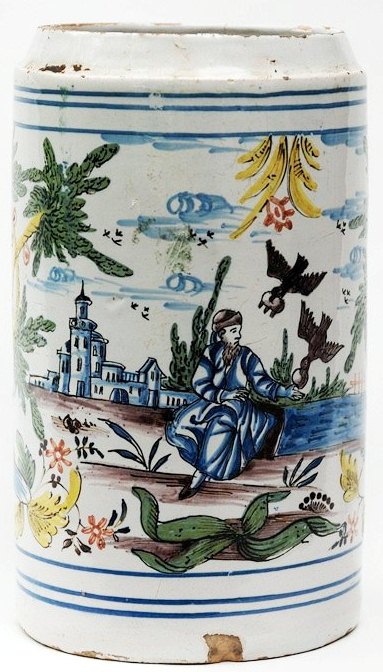

‘Figure 1’: Shows a typical stein produced in the north (it features a stein without pewter work to better show the stein body.) The bottom of the stein has straight sides and the top is indented.

Figure 2

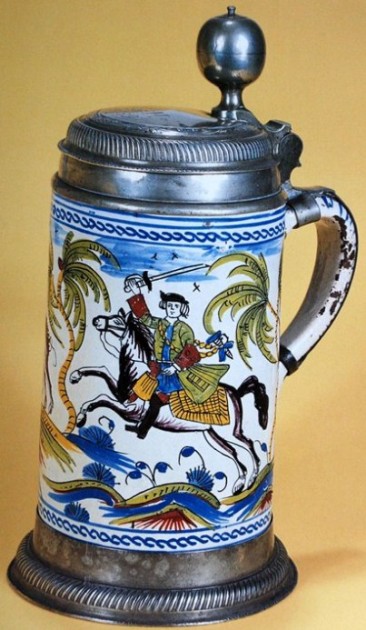

‘Figure 2’:  Is of a stein with typical pewter work. The top of the stein has a lid ring which fits around the indentation at the top of the stein body along with a lid.  The pewter base is straight at the sides and it usually has a full pewter base under neither, which would cover up any markings on the bottom of the stein. This is another reason why identifying faience can be difficult when the base pewter work covers up any markings that may be on the bottom of the stein itself.

Figure 3

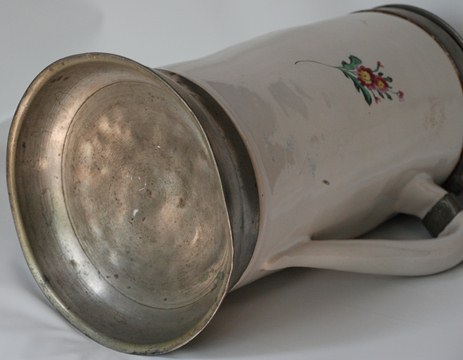

‘Figure 3’:  Shows the bottom of a typical pewter base. The lid ring and the pewter base are attached to the stein using pitch. Over time this will dry out and do to the straight side design at the bottom of the stein body, the pewter base will come loose and is often missing.

SOUTH GERMANY



 Figure 4                                                        Figure 5

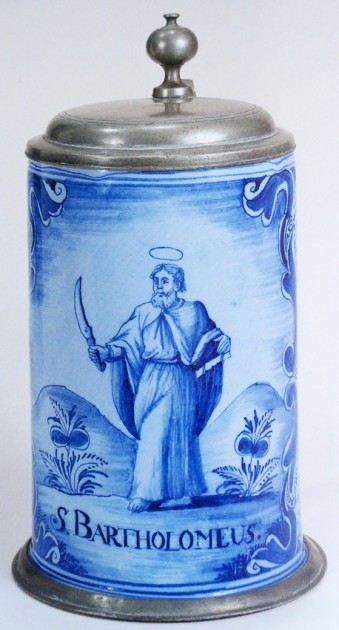

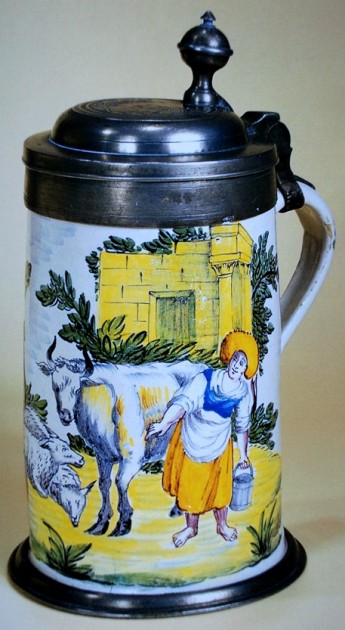

A typical south German stein is shown in ‘Figure 4.’  The stein body is straight at the top and the bottom is flared out. This stein does not have a lid ring but other south German steins may have a lid ring, as shown in ‘Figure 5.’

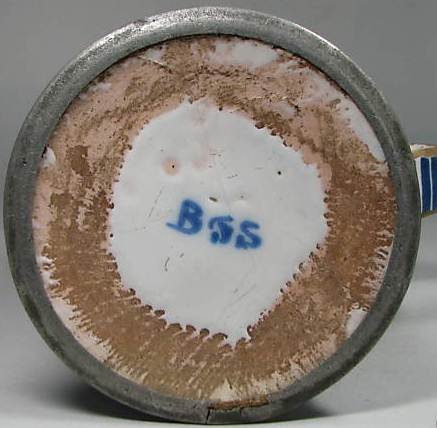

The pewter at the bottom of the stein is a ring which fits over the flare at the base of the stein body. This ring only fit around the edge of the stein and does not cover the bottom of the stein body, so any markings on the bottom of the stein are visible as shown in ‘Figure 6.’


Figure 6

SUMMARY:

So, by looking at the stein design and the pewter work you can identify whether a faience stein is from the north or the south, but now the hard part begins in trying to identify the individual factories.  In the next several articles I will discuss specific factories and give you help in identifying their steins. I will address the factories that I have studied and identify specific decoration traits that I have noticed. There should be another 6-10 parts to this series and I hope to have one article in each of the next few “PROSIT” (and “Steveonsteins” until finished.

There are two charts within this article that list the NORTH GERMAN and the SOUTH GERMAN factories.

BEFORE each chart are photos of various faience steins from each region. (If  Steve gets his act together!)

STARTING HERE  = NORTHERN GERMAN STEINS



N1 – Berlin                                                                                            N2 –  Berlin

The charts list the factories and their manufacturing dates, pewter base design, and the number of steins that I have in my faience stein database.

I have been tracking faience stein that come up in auctions both in the USA and Germany as well as eBay, going back to the mid “90s.

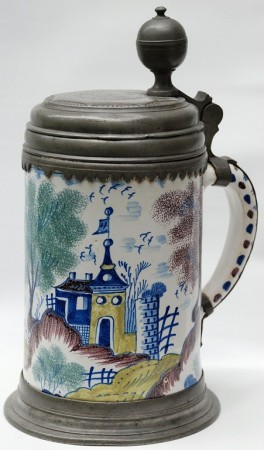

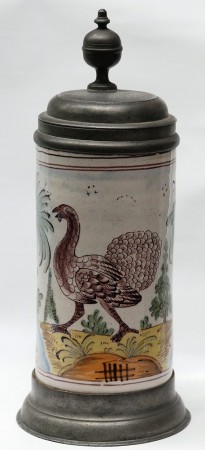

N3 –  Braunschweig                                                                        N4 –  Potsdam

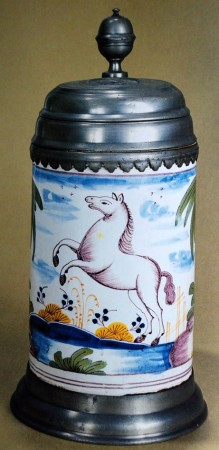

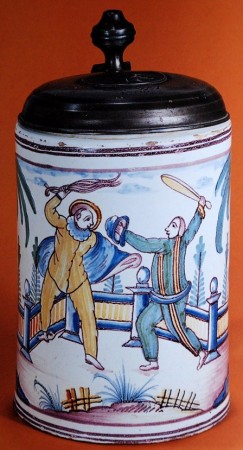

N5 –  Hannover-Munden                                        N6 –  Magdeburg

.

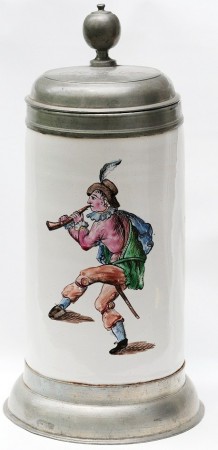

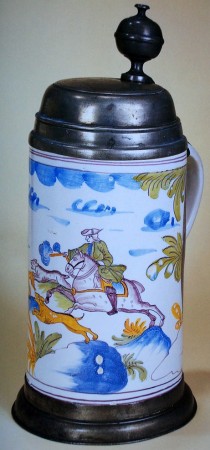

 N7 –  Rheinsberg                                                                          N8 –  Proskau

.

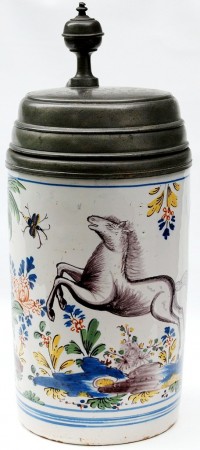

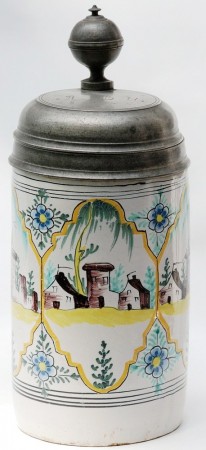

 N9 –  Dresden                                                                                           N10 –  Thuringen

.

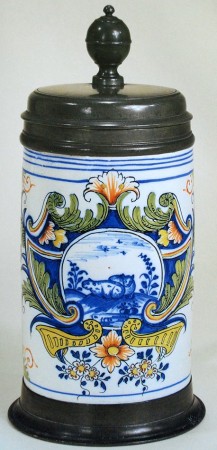

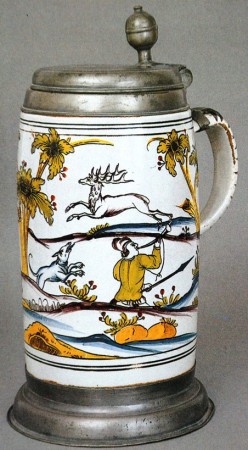

N11 –  Erfurt                                                                                                   N12 –  Dorotheenthal

Currently there are over 8100 steins in my database, which includes delft and Austrian faience. So the factory numbers will give you an idea of how rare a particular factory may be.

The pewter base information is SSFPB – straight side full pewter base

and FFR – flared foot ring.


CHART ONE – NORTH  GERMAN

FACTORY LOCATION /  PEWTER BASE ** /  TOTAL

North Germany (Norddeutsch)* / SSFPB / 62

Central German / 934

Berlin [1678-≈1768] / SSFPB / 185
Braunschweig [1707-1807] / SSFPB / 74
Frankfurt a.d.Oder [≈1763-≈1795] / SSFPB / 18
Hannoversch-Münden [1732-1854] / SSFPB / 407
Magdeburg [≈1754-1785]–White / SSFPB /  114
–Creamware /  SSFPB  / 84

Potsdam [1739-≈1796] /  SSFPB / 17
Rheinsberg [1762-1866] /  SSFPB / 34
Wrisbergholzen [≈1735-1834] / SSFPB /  1

Thüringen / 1013

Abtsbessingen [≈1739-end 1700’s] / SSFPB / 6
Coburg [1739-≈1786] /  SSFPB / 2
Dorotheenthal [≈1707-1803] /  SSFPB  /  85
Dresden [1708-1784] / SSFPB / 63
Erfurt [1717-1792] /  SSFPB / 318
Gera-Untermhaus [1750-1780] /  SSFPB /  3
Halle a. d. Saale [1736-1773] / SSFPB /  2
Rudolstadt [1720-≈1809] / SSFPB / 2
Zerbst [1721-1796] / SSFPB / 7
Thüringen Region / SSFPB / 525

Eastern German /  116

Glinitz (Zborowski) [1767-?] /  ??? /  0
Proskau [1769-1793] / SSFPB / 116

Seas / 6

Kellinghusen [1763-≈1846] / SSFPB / 1
Kiel [1763-1787] / ??? / 0
Lesum [1756-1800] / SSFPB / 5
Stockelsdorf [1772-1786] / ??? / 0

 ** = SSFPB – straight side full pewter base and
FFR – flared foot ring.

STARTING HERE  =  SOUTH  GERMANY STEINS

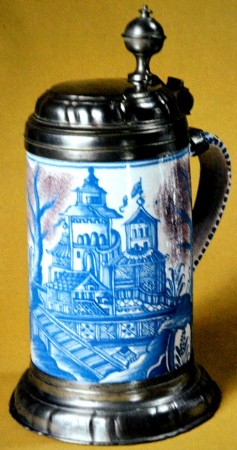

S1 –  Ansbach.                                                                                        S2 –  Bayreuth.

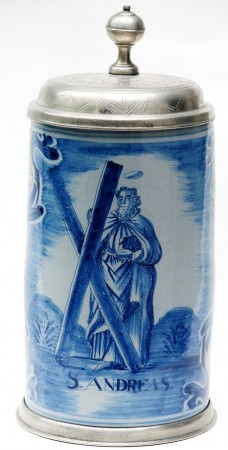

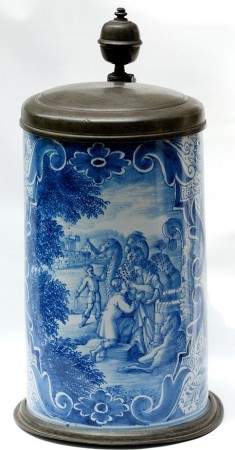

  S3 –  Nuremberg                                      S4 –  Nuremberg.

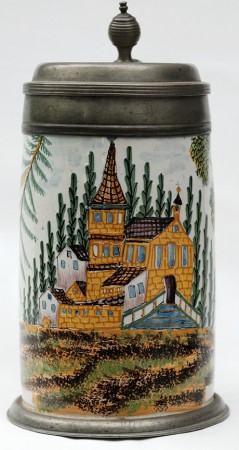

S5 –  Crailsheim.                                         S6 –  Schrezheim

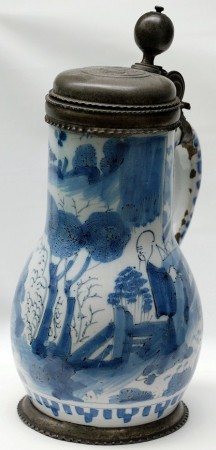

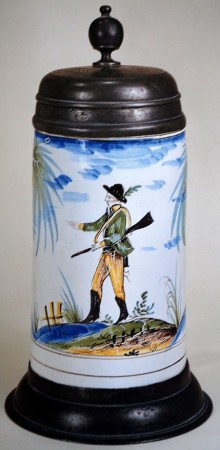

S7 –  Frankfurt am Main.                        S8 –  Offenbach

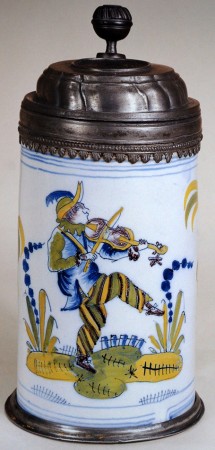

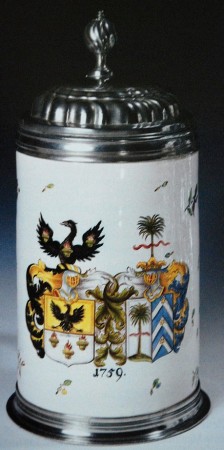

S9  – Kunersberg.                                        S10 –  Schrattenhofen

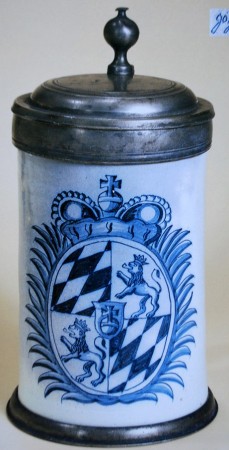

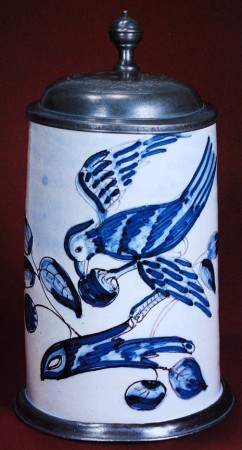

  S11 –  Friedberg.                                        S12 –  Goggingen

CHART TWO – SOUTH   GERMAN

FACTORY LOCATION /  PEWTER BASE  /  TOTAL

South Germany (Suddeutsch)* / FFR / 150

Western German / 798

Flörsheim [1765-1922] / FFR / 36
Frankfurt am Main [1666-1772] / FFR /  182
Fulda [1741-1758] / FFR / 3
Hanau [1661-1806] /  FFR / 527
Höchst [1746-≈1758] / FFR / 2
Kassel [1680-≈1780] / ???   /  2
Kelsterbach [1758-≈1835] / FFR / 11
Köln/Cologne [1770-?] / FFR / 6
Offenbach [1739-1807] / FFR / 19
Poppelsdorf [1755-≈1900] / FFR / 6
Wiesbaden [1770-1797] / FFR / 4

Württemberg / 1260

Crailsheim [≈1715-1827] / FFR / 309
Göppingen [1741-1778] / FFR / 4
Ludwigsburg [1734-1824] / FFR / 14
Schrezheim [1752-1852] / FFR / 933
Baden / 75
Durlach [1723-1847] / FFR / 71
Mosbach [1770-1828] / 4

Upper Plains / 1861

Amberg [1759-1910] / FFR / 30
Ansbach [1710-1804] / FFR / 384
Bayreuth [1714-1835] / FFR / 706
Nürnberg [1712-1840] / FFR / 735
Sulzbach [1752-1774] / FFR / 6

Swaben / 342

Augsburg ≈1747-≈1749] / FFR / 7
Donauwörth [≈1740-?] / FFR / 3
Friedberg [1754-1768] / FFR / 30
Göggingen [1748-1752] / FFR / 14
Künersberg [1745-1768] / FFR / 153
Öettingen-Schrattenhofen [1735-≈1830] / FFR / 71
Öettingen-Tiergarten* / FFR / 27
Schrattenhofen* / FFR / 32
Swaben Region/ FFR / 5

Upper Rhine / 0

Hagenau [1724-1781] / 0
Strassburg-Hagenau [1709-1779] / 0
Niederweiler [≈1755-1827] / 0
